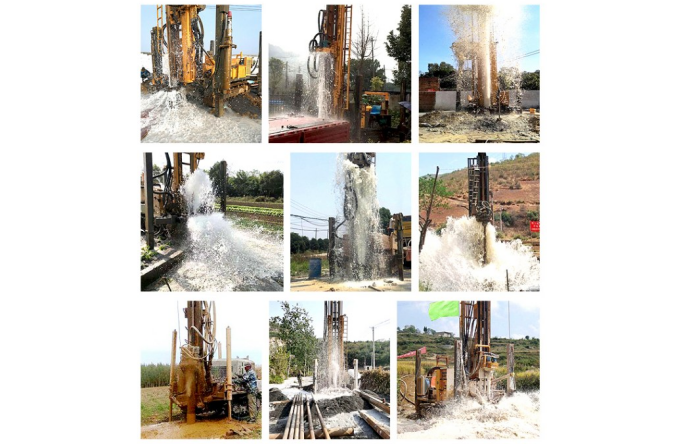

This product is an efficient and multi-functional drilling equipment, which is mainly suitable for drilling Wells, agricultural irrigation Wells, ground source heat pump Wells and other Wells, especially for water intake projects in mountainous areas and rocky formations. The drill can be drilled in different formations with a maximum drilling diameter of 350mm. The rig adopts new hydraulic technology, supporting large torque hydraulic motor rotation and large diameter hydraulic cylinder propulsion, the famous engine provides power for the hydraulic system, two-stage air filter and intake design of compressed air, extending the service life of the diesel engine. The unique pump set design facilitates maintenance and reduces maintenance costs. Centralized control of the hydraulic console for easy operation. This series of drilling rig adopts excavator crawler chassis, strong off-road performance. The independent module design allows the rig to be easily mounted on the truck, increasing its mobility. The two-speed rotation and propulsion speed can meet the different needs of drilling in soil and rock strata. The combined positioner can be adjusted and replaced according to different types of drill pipe and impactor to ensure accurate and reliable positioning. Hoist structure is convenient for lifting drill pipe and impactor, reducing labor intensity.
Electric starting: The use of 24V electric starting diesel engine, can greatly reduce the operator's labor, in the cold season, the diesel engine is difficult to start, showing the superiority of the rig.

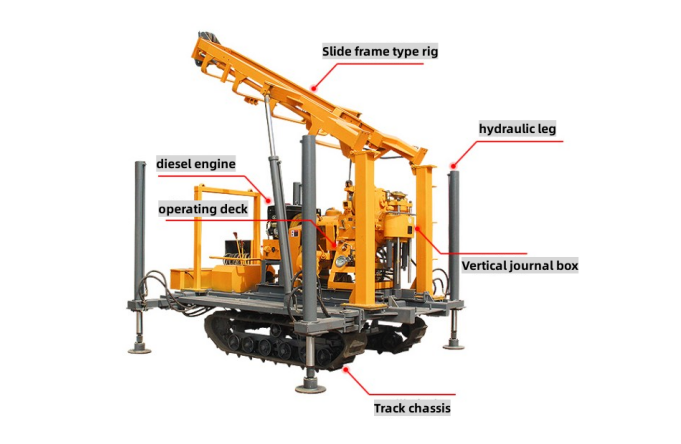

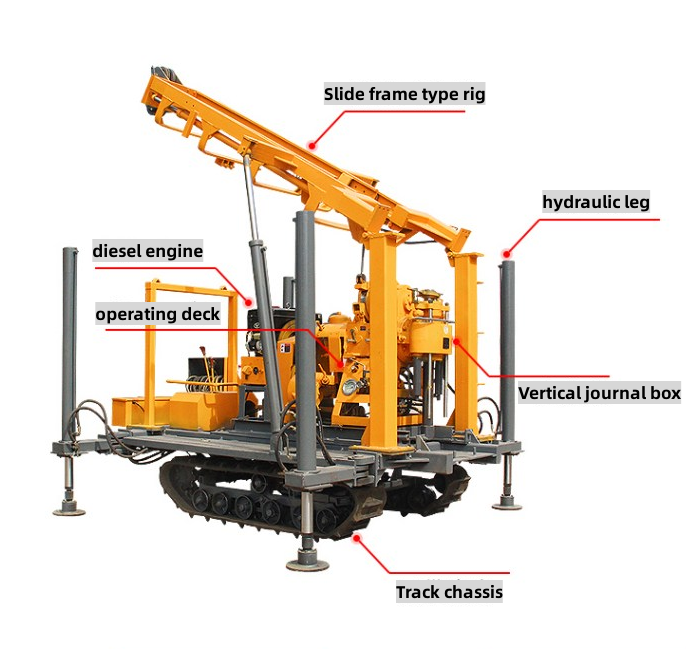

Rig: hydraulic slide rig, with two cylinders as support, a group of hydraulic valve rig supine, the operation is time-saving, labor-saving, safe and feasible.
Chassis: rubber wire track, light weight, long service life, while reducing the noise of the vehicle walking mechanism, reduce the body vibration, can greatly reduce fuel consumption, walking does not hurt the road.

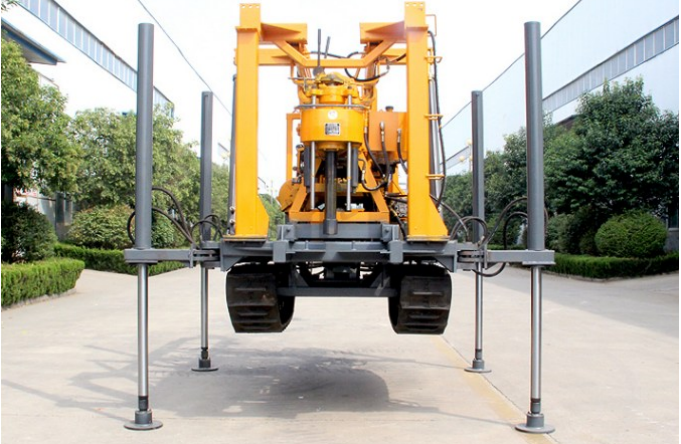

Hydraulic legs: the chassis comes with four hydraulic high legs, supporting the height of 1.6 meters, easy to load and unload the truck, reduce the lifting cost and improve efficiency, while working the ground can be levelled as an auxiliary support.
| Attributes | |||
| Product Name | Crawler hydraulic water well drilling rig | Product Name | Crawler hydraulic water well drilling rig |
| Model | WD-180 | Model | WD-200 |
| Drilling depth | 180m | Drilling depth | 200m |
| Drilling diameter | 75-220mm | Drilling diameter | 75-300mm |
| Impetus | Diesel engine | Impetus | Diesel engine |
| Rated power | 15kw | Rated power | 16.2kw |
| Vertical shaft speed | 570r/min | Vertical shaft speed | 557r/min |
| Rig height | 6.5m | Rig height | 6m |
| Rig weight | 2600kg | Rig weight | 3000kg |
