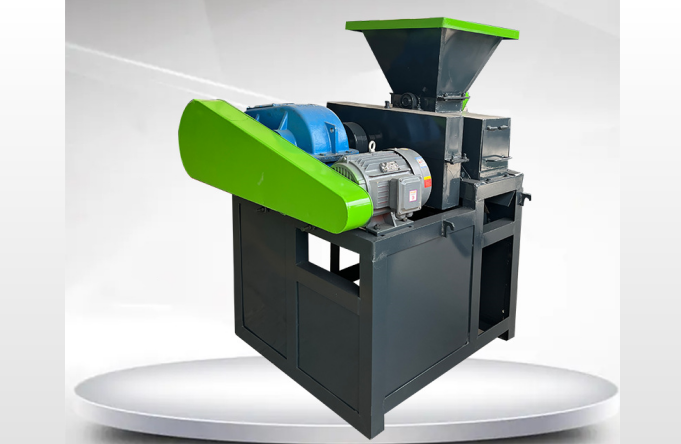

Ball pressing machine is also called: strong ball pressing machine, mineral powder ball pressing machine, silver ball pressing machine, thousand powder ball pressing machine, goose egg forming machine and so on. The ball press machine is mainly used for making balls and blocks of nonferrous and black metal ore powder, which is directly smelted into the furnace to improve the added value. All metallurgical industry waste, auxiliary materials need to be on the furnace, all need to press the ball to complete. For example: in addition to sitting, pool mud, oxide, steel slag, iron powder, aluminum ash powder, silica manganese ore powder and so on.
Ball pressing machine can be used to press pulverized coal, iron powder, coking coal, aluminum powder, iron filings, iron oxide, carbon powder, carbon powder, slag, gypsum, tailings, sludge, Kaolin, activated carbon, coke powder and other powder, powder, waste, skin slag, widely used in resistant materials, power plants, metallurgy, chemical industry, energy, transportation, heating and other industries, after the ball pressing mechanism made of materials, energy saving and environmental protection, It is easy to transport, improves the utilization rate of waste, and has good economic and social benefits.
| Technical Specification | ||||||||
| model | 360 | 400 | 500 | 650 | 750 | 850 | 1250 | |
| output | hour | 4t/h | 8t/h | 11t/h | 18t/h | 25t/h | 35t/h | 70t/h |
| year | 10,000t | 20,000t | 30,000t | 50,000t | 70,000t | 100,000t | 200,000t | |
| roll width | 250mm | 280mm | 300mm | 336mm | 400mm | 500mm | 650mm | |
| roll diameter | 360mm | 400mm | 500mm | 650mm | 750mm | 850mm | 1250mm | |
| power | 7.5kw | 11-15kw | 18.5-22kw | 20-30kw | 45kw | 75kw | 130kw | |
| speed of mainshaft | 18r/min | 15r/min | 13r/min | 13r/min | 13r/min | 10r/min | 10r/min | |
| pressure form | Inclined iron constant pressure; Shaft seat tie rod; Hydraulic constant pressure interchange |
|||||||
| roller material | alloy steel | |||||||
| tactic form | Two-axis single pressure type/four-axis double pressure type | |||||||
