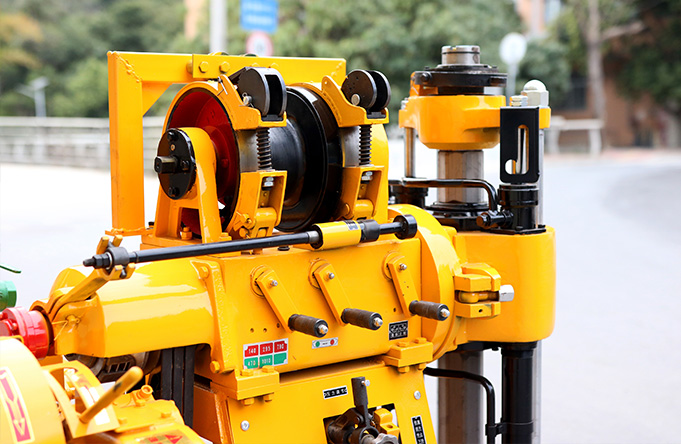

This product is installed in the original drill base before and after the transfer machine, can be removed or installed when the drill pipe is removed or installed, the main engine can be moved back directly to free the hole for disassembling or installing the drill pipe work, eliminating the step of opening and closing the box, and the single cylinder 160 mud pump is installed to provide greater flow of mud and greater pressure for drilling.
This product is installed in the original drill base before and after the transfer machine, can be removed or installed when the drill pipe is removed or installed, the main engine can be moved back directly to free the hole for disassembling or installing the drill pipe work, eliminating the step of opening and closing the box, and the single cylinder 160 mud pump is installed to provide greater flow of mud and greater pressure for drilling.
|
Attributes |
|
|
Applicable Industries |
Building Material Shops, Machinery Repair Shops, Farms, Restaurant, Construction works , Other |
|
Video outgoing-inspection |
provided |
|
quotation |
The quotation valid time is 30 days |
|
Time of delivery |
Within 7 days after receipt of the full payment |
|
Warranty of core components |
12 months |
|
Core Components |
Motor, Pump |
|
Condition |
new |
|
Weight |
500kg |
|
Efficiency |
High Efficiency |
|
Drill depth |
150m |
|
Pipe diameter |
42, 50mm |
|
Opening diameter |
75-300mm |
|
drill-hole ended |
75mm |
|
drilling angle |
75-90° |
|
Drilling rig size |
1710*850*1340mm |
|
Oil pump parameter |
|
|
Oil pump model |
YBC-20/125 |
|
rated pressure |
12.5MPa |
|
Oil pump flow |
20ml/r |
|
rated speed |
1500r/min |
