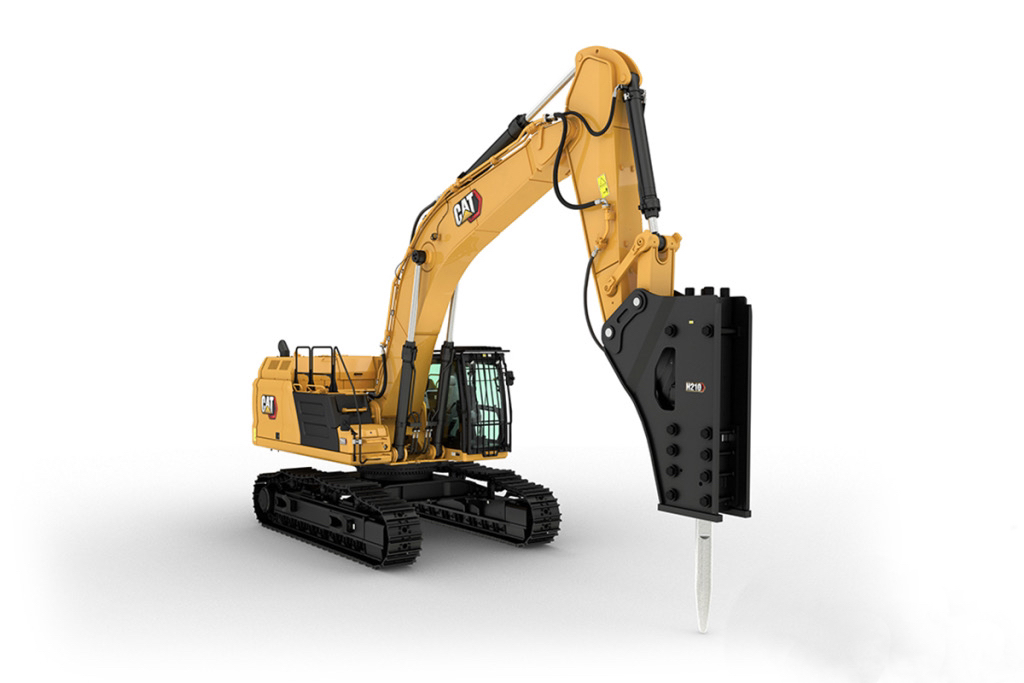

CAT ® 355 is the superstar of mine crushing and efficient loading, designed to overcome difficult problems, is the ideal choice for outstanding large-scale operations, the country Four 355 engine power increased by 10%, mature post-processing system, no downtime to regenerate, increase working time,332 kW of powerful power for high production capacity, Suitable for 210mm crushing hammer or 3.8m ³ rock bucket; And fuel consumption and other use costs are not high, which is thanks to the innovative fully electronic hydraulic system. 355 Optional wider variable gauge track for improved stability.
Performance characteristics of Caterpillar's new generation CAT®355 hydraulic excavator
- Reliable and proven exhaust aftertreatment equipment
- No downtime regeneration to maximize uptime
- High capacity, suitable for 210mm crushing hammer or 3.8m3 rock bucket
- Low cost of ownership and use, guaranteed fuel consumption
- High durability, extremely heavy boom bucket rod, exclusive crushing configuration
|
engine type |
Cat ® C 13B |
|
engine power |
332 Kw |
|
net power |
330 kW |
|
cylinder diameter |
130 mm |
|
stroke |
157 mm |
|
displacement |
12.5 L |
|
Operating weight |
|
|
Operating weight |
Fixed gauge chassis of 51,400 kg |
|
Variable gauge chassis of 53,300 kg |
|
|
Rotation mechanism |
|
|
swiveling speed |
8.3 rpm |
|
Maximum rotary torque |
189 kN ∙ m |
|
hydraulic pressure system |
|
|
Main system -Max. flow rate ( Implement) |
779 L /min |
|
Maximum pressure - -the equipment |
35,000 kPa |
|
Maximum pressure - driving |
35,000 kPa |
|
Maximum pressure - rotation |
26,000 kPa |
|
Maintenance filling capacity |
|
|
Fuel tank capacity |
715 L |
|
coolant passage |
52 L |
|
hydraulic oil tank |
217 L |
|
Engine oil |
40 L |
